2X Front Extended Drive Shaft for Ford Ranger PX1 PX2 PX3, Mazda BT50 UP UR 4WD
Brand New PAIR Front CV Drive Shaft

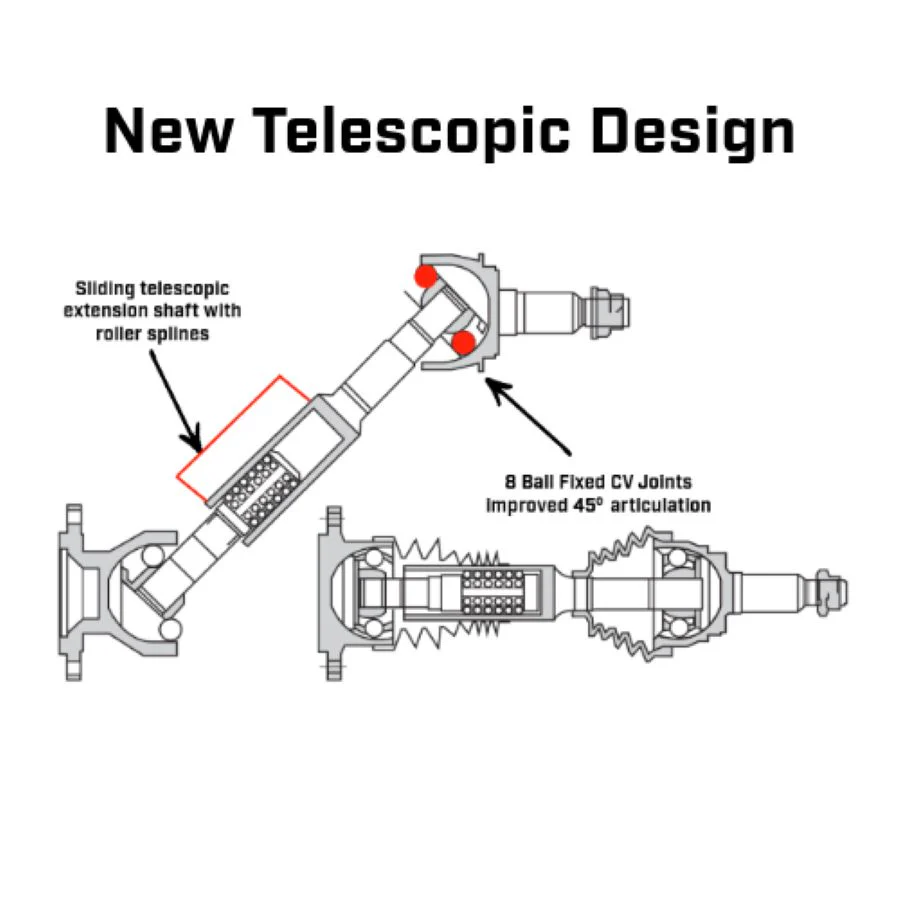

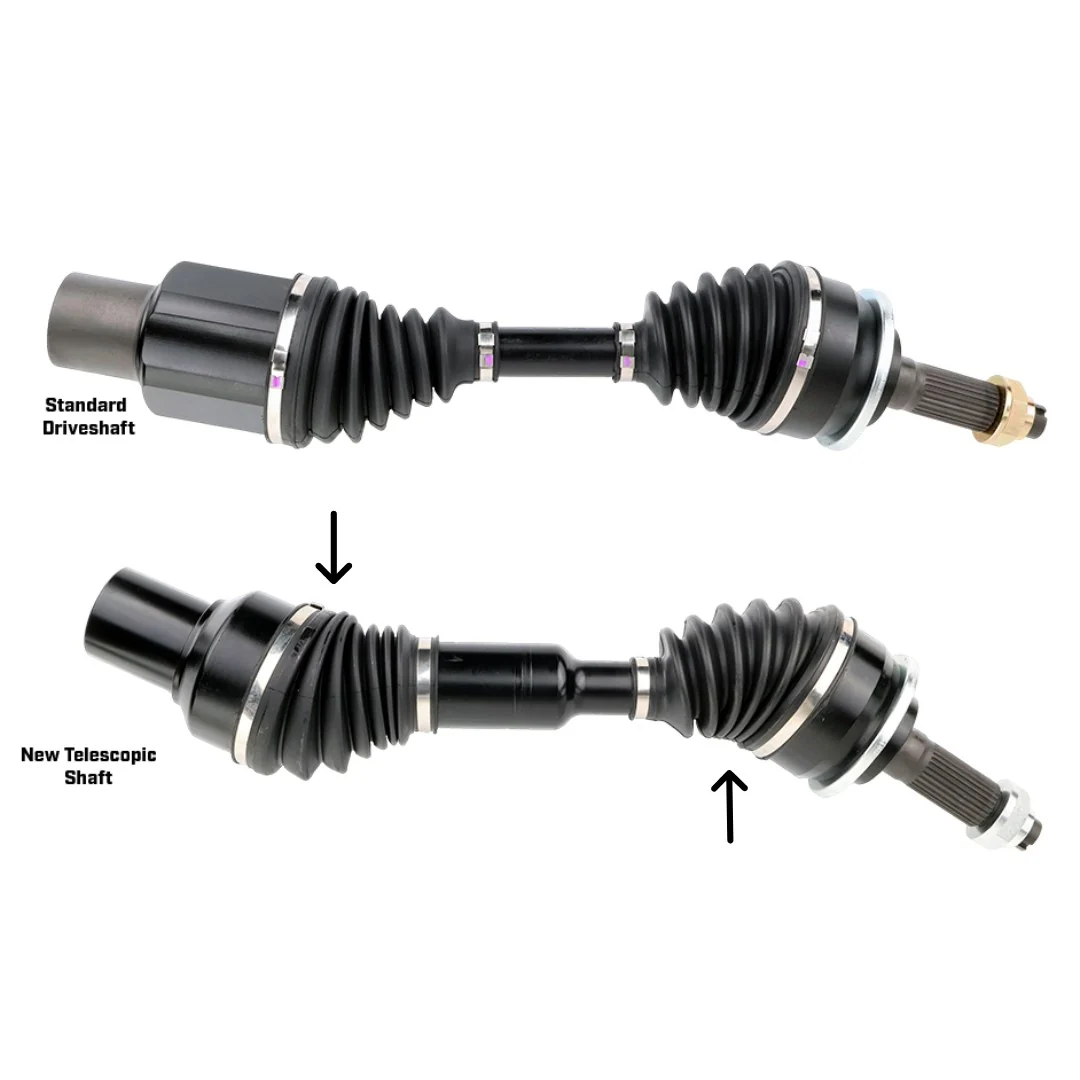

***New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines PAIR Kit For Lifted and Non-Lifted Vehicles, Compressed Length 609mm Extends to 666mm***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Ford Ranger PX1, PX2, PX3 2.0L Y2NS 2.2L P4AT, 3.2L P5AT 4WD Manual Automatic (09/2011-06/2022) - Does not fit Raptor, Raptor X models
- Mazda BT50 UP UR 3.2L P5AT 4WD Manual Automatic (11/2011-07/2020)
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
Left CV Shaft
- Length: 609mm (Compressed) - 666mm (Extended)
- Spline Count - Outer/Wheel Side: 28T
- Spline Count - Inner/Diff Side: 29T
- Inboard Joint Type: Ball
- Outboard Joint Type: Ball
- Inner Joint Seal ID: 35.6mm
- Hub Nut Style: M24 x 1.5
- Telescopic Design: Centre Bar Housing Has an Extending Roller Spline
Right CV Shaft
- Length: 568mm (Compressed) - 625mm (Extended)
- Spline Count - Outer/Wheel Side: 28T
- Spline Count - Inner/Diff Side: 28T +1 Blank Keyway
- Inboard Joint Type: Ball
- Outboard Joint Type: Ball
- Hub Nut Style: M24 x 1.5
- Telescopic Design: Centre Bar Housing Has an Extending Roller Spline
What's Included
- 2 x Telescopic CV Shaft
All components include a 12 month/20,000km warranty and support from our specialist team.
