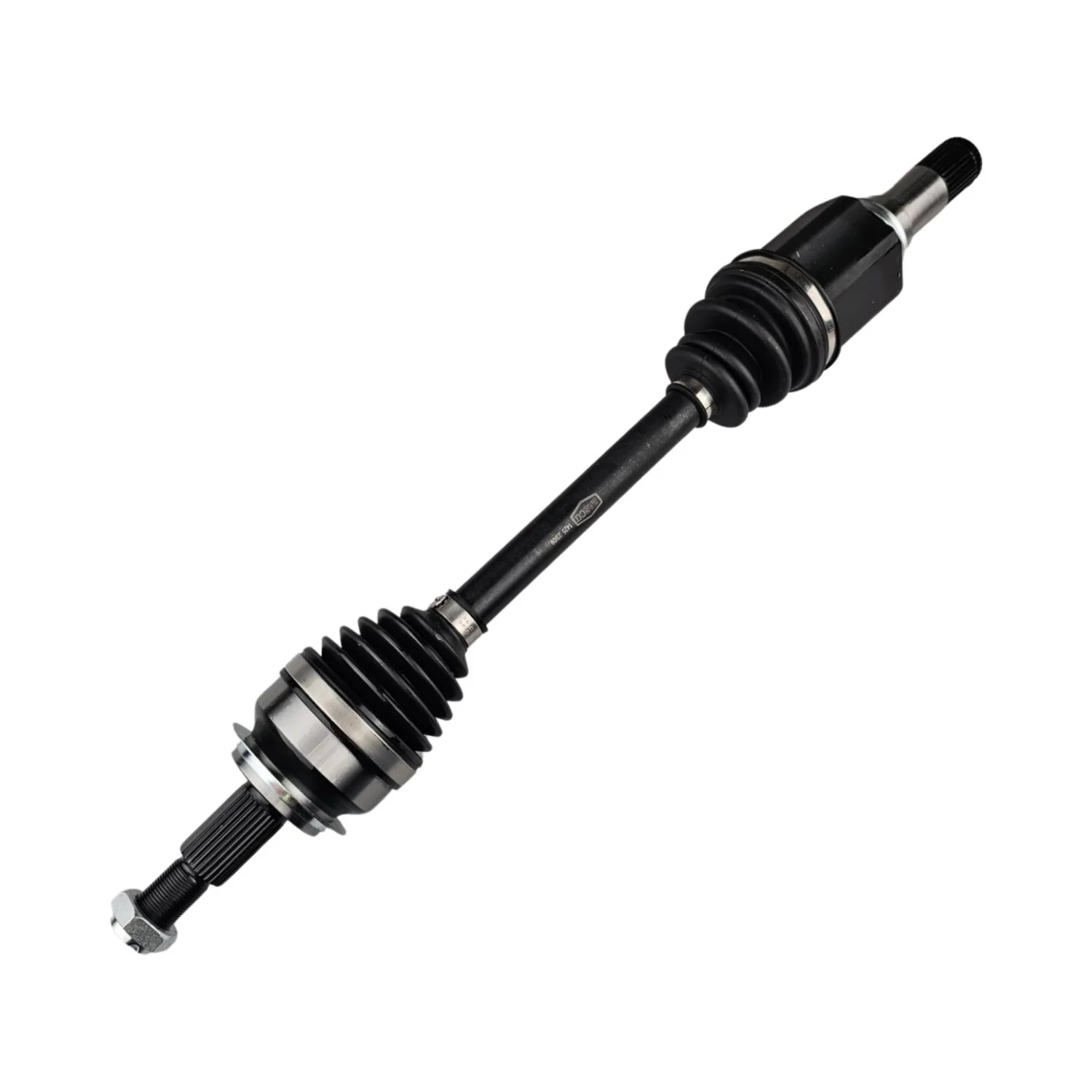

Pair Front CV Drive Shaft for Mazda CX-3 DK 2.0L PE-VPS AWD Automatic 2015~On
Brand New Left & Right Front CV Drive Shaft
***Suits AWD, Auto Transmission | Please Check OE Before Fitting***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Mazda CX-3, CX-3 GSX DK DK4W7 (03/2015~01/2023) 2.0L Petrol PE-VPS
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
- Length (Compressed): L: 622 / R: 984 mm
- Spline Count - Outer/Wheel Side: 28
- Spline Count - Inner/Diff Side: 31
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Bearing Outer Diameter on Extension Shaft: 70 mm
- Hub Nut: M22 x 1.5
What's Included
- 2 x CV Drive Shafts
All components include a 12 month/20,000km warranty and support from our specialist team.
Original: $266.33
-70%$266.33
$79.90More Images
Pair Front CV Drive Shaft for Mazda CX-3 DK 2.0L PE-VPS AWD Automatic 2015~On
Brand New Left & Right Front CV Drive Shaft
***Suits AWD, Auto Transmission | Please Check OE Before Fitting***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Mazda CX-3, CX-3 GSX DK DK4W7 (03/2015~01/2023) 2.0L Petrol PE-VPS
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
- Length (Compressed): L: 622 / R: 984 mm
- Spline Count - Outer/Wheel Side: 28
- Spline Count - Inner/Diff Side: 31
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Bearing Outer Diameter on Extension Shaft: 70 mm
- Hub Nut: M22 x 1.5
What's Included
- 2 x CV Drive Shafts
All components include a 12 month/20,000km warranty and support from our specialist team.
