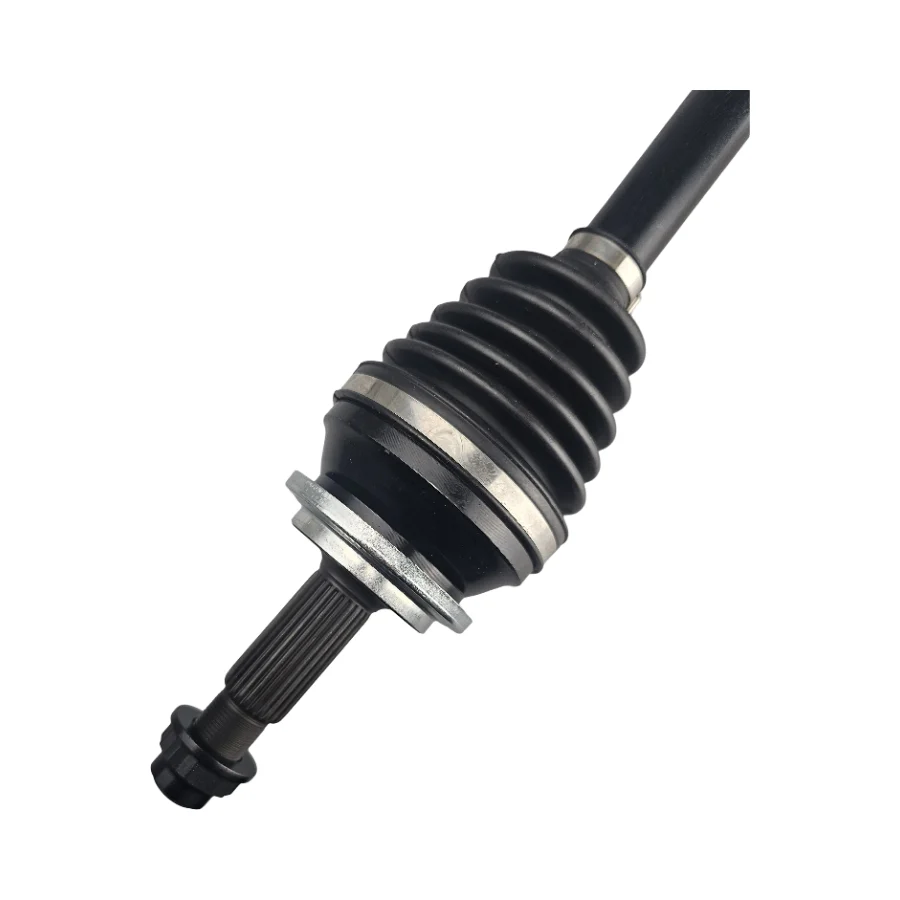

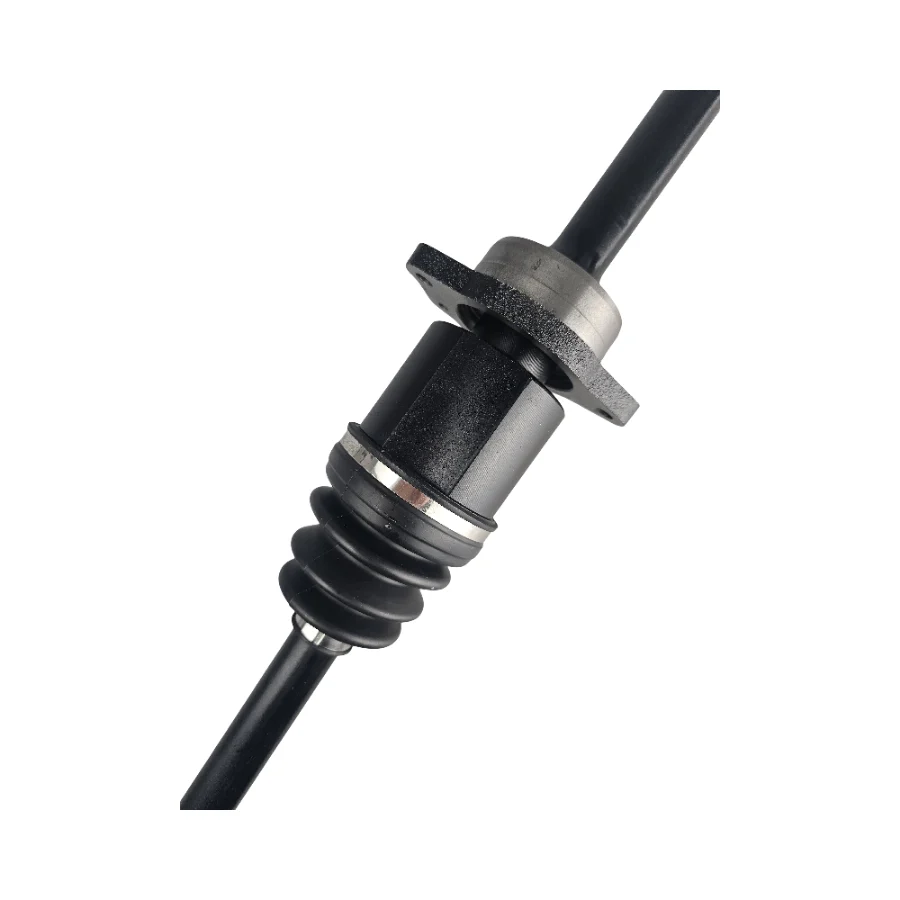

Front Right CV Axle Drive Shaft for Toyota Rav4 ACA38 ACA36 2.4L Auto 2005-2016
One CV Axle Drive Shaft - Front Right-Hand Side
****Front Right, for FWD Auto transmission only-****
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless-steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Toyota Rav 4 ACA38 2.4L 2AZFE FWD (08/2008 - 06/2016)
Includes Sub-models: Altitude, Cruiser, CV, 240S, G, Style & X
Sizing and Specifications
- Length (Compressed): 977 MM
- Spline Count - Outer/Wheel Side: 26T
- Spline Count - Inner/Diff Side: 24T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Inner Joint Seal ID: 40 MM
- Hub Nut Style: M10 x 1.25 @113.8mm centre to centre
- Extension Shaft Length from Inside of Bearing Face: 364MM
- Bearing Outer Diameter on Extension Shaft: 62 MM
What's Included
- 1 x CV Shaft Right Side
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality have resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note this excludes CV Boots, which are only warranted for 3 months from date of purchase.
