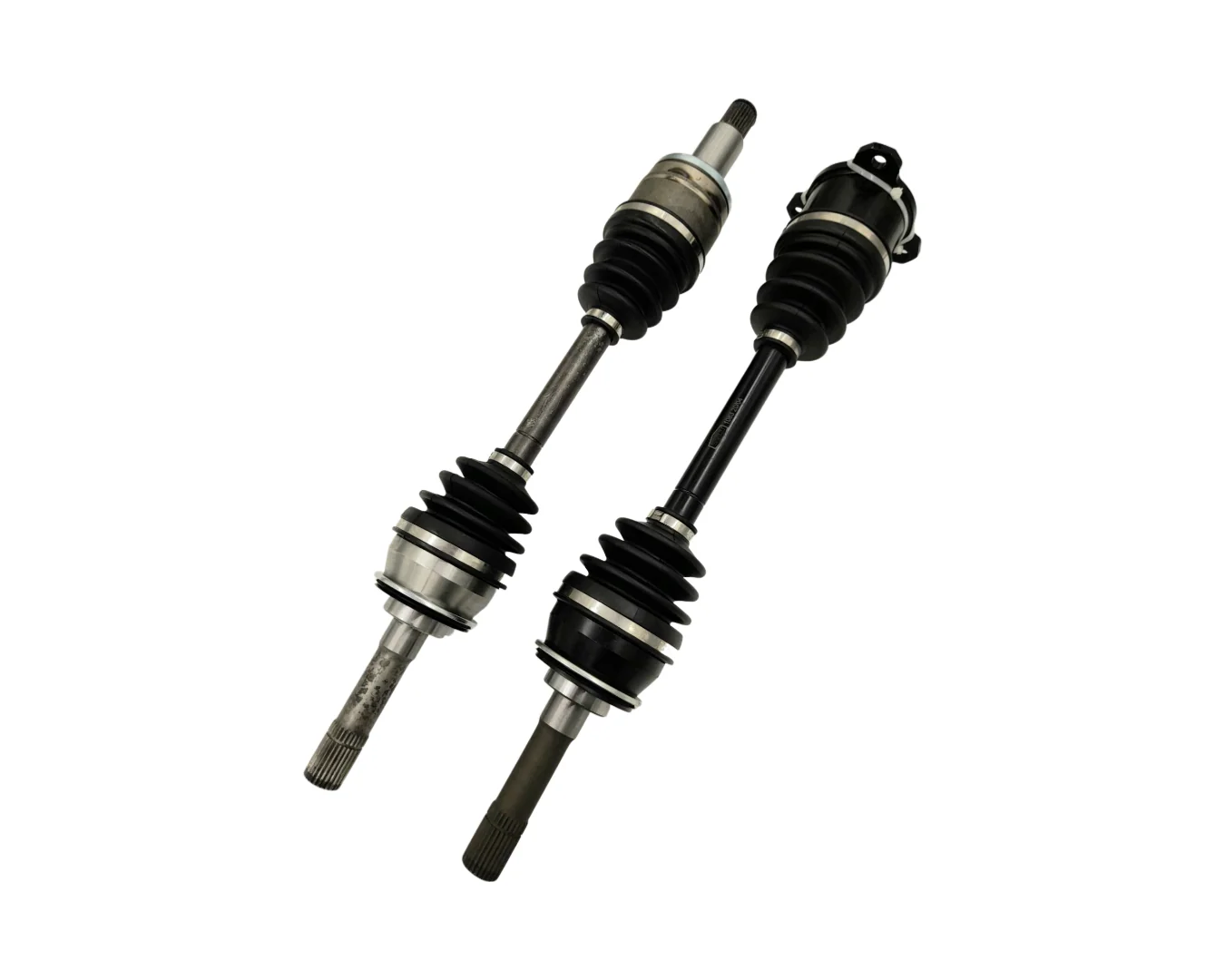

PAIR CV Drive Shafts for Suzuki X90 Vitara & Grand 1.6 2.0 2.5L 1994-2005 V6
CV Axle Drive Shaft - PAIR Left and Right Hand Side Automatic Manual 4WD
PAIR kit, for individual shafts please see CVA1057 or CVA1083
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Suzuki Grand Vitara SQ420 2.0L J20A 4WD (04/1998 - 08/2005)
Includes Sub-models Sports - Suzuki Grand Vitara SQ625 2.5L H25A 4WD (04/1998 - 08/2005)
Includes Sub-models Freestyle, Limited Edition, SLALOM, Sports, Sports Limited - Suzuki Vitara SV620 2.0L H20A 4WD (04/1995 - 09/1998)
Includes Sub-models V6 - Suzuki X90 SZ416 1.6L G16B 4WD (1995 - 1998)
Includes Sub-models
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 532mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: Bolt on Type
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- 3 Bolt Inner Joint Diameter: 105mm
- Bolt Hole Diameter: 10.4mm
- 3 Bolt Flange Outer Diameter: 126.5mm
- Hub Bolt Style: M8
Right CV Shaft
- Length (Compressed): 607mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: 26
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Hub Bolt Style: M8
What's Included
- 2 x CV Shaft
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
Original: $166.52
-70%$166.52
$49.96PAIR CV Drive Shafts for Suzuki X90 Vitara & Grand 1.6 2.0 2.5L 1994-2005 V6
CV Axle Drive Shaft - PAIR Left and Right Hand Side Automatic Manual 4WD
PAIR kit, for individual shafts please see CVA1057 or CVA1083
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Suzuki Grand Vitara SQ420 2.0L J20A 4WD (04/1998 - 08/2005)
Includes Sub-models Sports - Suzuki Grand Vitara SQ625 2.5L H25A 4WD (04/1998 - 08/2005)
Includes Sub-models Freestyle, Limited Edition, SLALOM, Sports, Sports Limited - Suzuki Vitara SV620 2.0L H20A 4WD (04/1995 - 09/1998)
Includes Sub-models V6 - Suzuki X90 SZ416 1.6L G16B 4WD (1995 - 1998)
Includes Sub-models
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 532mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: Bolt on Type
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- 3 Bolt Inner Joint Diameter: 105mm
- Bolt Hole Diameter: 10.4mm
- 3 Bolt Flange Outer Diameter: 126.5mm
- Hub Bolt Style: M8
Right CV Shaft
- Length (Compressed): 607mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: 26
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Hub Bolt Style: M8
What's Included
- 2 x CV Shaft
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
